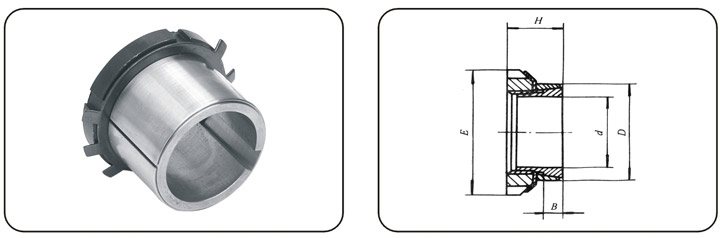

产品名称：Z19B型胀套(JB/T7934-1999)
产品编号：
产品原价：￥
本站价格：￥
商品描述
| Z19B型胀套基本尺寸和参数 | |||||||||||||
| 基本尺寸 | 额定负荷 | 内六角螺钉 | 胀套与轴结合面上的压力Pt(N/mm2) | 胀套与轴毂结合面上的压力Pt(N/mm2) | 重量G （Kg） |
||||||||
| d | D | E | H | B | Mt | Ft | d1 | MA(N-m) | |||||
| 14 | 25 | 32 | 30 | 20 | 64 | 9.1 | M20×1 | 95 | 85 | 45 | 0.08 | ||
| 15 | 25 | 32 | 30 | 20 | 70 | 9.1 | M20×1 | 95 | 80 | 45 | 0.08 | ||
| 16 | 25 | 32 | 30 | 20 | 73 | 9.1 | M20×1 | 95 | 75 | 45 | 0.07 | ||
| 17 | 25 | 32 | 32 | 20 | 80 | 9.1 | M22×1 | 95 | 70 | 45 | 0.07 | ||
| 18 | 30 | 32 | 32 | 20 | 83 | 9.1 | M22×1 | 95 | 65 | 40 | 0.12 | ||
| 19 | 30 | 38 | 32 | 20 | 105 | 11.0 | M25×1.5 | 160 | 75 | 45 | 0.11 | ||
| 20 | 30 | 38 | 32 | 20 | 112 | 11.0 | M25×1.5 | 160 | 70 | 45 | 0.10 | ||
| 22 | 35 | 45 | 36 | 25 | 163 | 14.5 | M30×1.5 | 220 | 70 | 45 | 0.17 | ||
| 24 | 35 | 45 | 36 | 25 | 178 | 14.5 | M30×1.5 | 220 | 65 | 45 | 0.15 | ||
| 25 | 35 | 45 | 36 | 25 | 185 | 14.5 | M30×1.5 | 220 | 60 | 45 | 0.14 | ||
| 28 | 40 | 52 | 42 | 30 | 250 | 14.5 | M35×1.5 | 340 | 55 | 40 | 0.22 | ||
| 30 | 40 | 52 | 42 | 30 | 270 | 17.5 | M35×1.5 | 340 | 50 | 40 | 0.19 | ||
| 32 | 42 | 52 | 44 | 30 | 350 | 21.5 | M36×1.5 | 340 | 60 | 45 | 0.20 | ||
| 32 | 45 | 58 | 44 | 30 | 350 | 21.5 | M40×1.5 | 480 | 60 | 45 | 0.27 | ||
| 35 | 45 | 58 | 44 | 30 | 390 | 21.5 | M40×1.5 | 480 | 55 | 45 | 0.22 | ||
| 38 | 50 | 65 | 45 | 30 | 500 | 26.0 | M45×1.5 | 680 | 60 | 45 | 0.30 | ||
| 40 | 50 | 65 | 45 | 30 | 520 | 26.0 | M45×1.5 | 680 | 60 | 50 | 0.25 | ||
| 45 | 55 | 70 | 46 | 30 | 680 | 30.0 | M50×1.5 | 870 | 60 | 50 | 0.29 | ||
| 48 | 60 | 75 | 46 | 30 | 840 | 35.0 | M55×2 | 970 | 60 | 50 | 0.37 | ||
| 50 | 60 | 75 | 46 | 30 | 880 | 35.0 | M55×2 | 970 | 60 | 50 | 0.32 | ||
| 55 | 65 | 80 | 46 | 30 | 1030 | 37.5 | M60×2 | 1100 | 60 | 50 | 0.34 | ||
| 60 | 70 | 85 | 52 | 30 | 1360 | 45.0 | M65×2 | 1300 | 65 | 55 | 0.42 | ||
