产品名称：Z12C型胀套(JB/T7934-1999)
产品编号：
产品原价：￥
本站价格：￥
商品描述

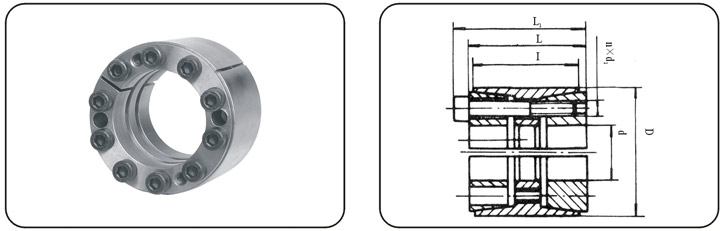

| Z12C型胀套基本尺寸和参数 | |||||||||||||
| 基本尺寸 | 内六角螺钉 | 额定负荷 | 胀套与轴结合面上的压力Pt(N/mm2) | 胀套与轴毂结合面上的压力Pt(N/mm2) | 螺钉的拧紧力矩 MA(N-m) |
重量G （Kg） |
|||||||
| d | D | I | L | L1 | d1 | n | Ft | Mt | |||||
| 70 | 110 | 50 | 60 | 70 | M10 | 8 | 121 | 4.25 | 115 | 64 | 49 | 2.3 | |
| 80 | 120 | 50 | 60 | 70 | M10 | 10 | 152 | 6.10 | 125 | 73 | 49 | 2.5 | |
| 90 | 130 | 50 | 60 | 70 | M10 | 11 | 167 | 7.50 | 122 | 74 | 49 | 2.7 | |
| 100 | 145 | 60 | 70 | 82 | M12 | 10 | 177 | 8.81 | 97 | 60 | 69 | 4.1 | |
| 110 | 155 | 60 | 70 | 82 | M12 | 10 | 177 | 9.74 | 89 | 56 | 69 | 4.4 | |
| 120 | 165 | 60 | 70 | 82 | M12 | 11 | 193 | 11.6 | 89 | 58 | 69 | 4.8 | |
| 130 | 180 | 65 | 79 | 91 | M12 | 14 | 247 | 16.06 | 93 | 61 | 69 | 6.3 | |
| 140 | 190 | 65 | 79 | 91 | M12 | 15 | 264 | 18.5 | 93 | 62 | 69 | 6.6 | |
| 150 | 200 | 65 | 79 | 91 | M12 | 15 | 264 | 19.86 | 87 | 59 | 69 | 7.8 | |
| 160 | 210 | 65 | 79 | 91 | M12 | 16 | 290 | 23.27 | 87 | 60 | 69 | 9.4 | |
| 170 | 225 | 78 | 92 | 106 | M14 | 15 | 363 | 30.87 | 92 | 63 | 108 | 10.7 | |
| 180 | 235 | 78 | 92 | 106 | M14 | 15 | 363 | 32.75 | 87 | 60 | 108 | 11.3 | |
| 190 | 250 | 88 | 102 | 116 | M14 | 16 | 387 | 36.8 | 78 | 50 | 108 | 14.6 | |
| 200 | 260 | 88 | 102 | 116 | M14 | 18 | 484 | 48.45 | 92 | 59 | 108 | 15.3 | |
| 220 | 285 | 96 | 108 | 124 | M16 | 15 | 505 | 55.57 | 83 | 54 | 168 | 20.2 | |
| 240 | 305 | 96 | 108 | 124 | M16 | 20 | 673 | 80.75 | 100 | 67 | 168 | 21.8 | |
| 260 | 325 | 96 | 108 | 124 | M16 | 21 | 705 | 91.67 | 97 | 66 | 168 | 23.4 | |
| 280 | 355 | 96 | 110 | 130 | M20 | 15 | 877 | 122.8 | 114 | 75 | 369 | 30.0 | |
| 300 | 375 | 96 | 110 | 130 | M20 | 15 | 887 | 133 | 106 | 72 | 369 | 31.2 | |
| 320 | 405 | 124 | 136 | 156 | M20 | 20 | 1181 | 189 | 102 | 67 | 369 | 48.0 | |
| 340 | 425 | 124 | 136 | 156 | M20 | 20 | 1181 | 200.8 | 96 | 64 | 369 | 51.0 | |
| 360 | 455 | 140 | 155 | 177 | M22 | 20 | 1455 | 262 | 98 | 62 | 495 | 69.0 | |
| 380 | 475 | 140 | 155 | 177 | M22 | 20 | 1455 | 277.7 | 93 | 60 | 495 | 73.0 | |
| 400 | 495 | 140 | 155 | 177 | M22 | 22 | 1595 | 319 | 97 | 65 | 495 | 76.0 | |
| 420 | 515 | 140 | 155 | 177 | M22 | 24 | 1751 | 367.8 | 100 | 68 | 495 | 80.0 | |
| 440 | 535 | 140 | 155 | 177 | M22 | 24 | 1952 | 429.5 | 98 | 73 | 550 | 81.0 | |
| 460 | 555 | 140 | 155 | 177 | M22 | 24 | 1952 | 448.4 | 94 | 70 | 550 | 85.0 | |
| 480 | 575 | 140 | 155 | 177 | M22 | 25 | 2040 | 489.7 | 94 | 70 | 550 | 88.0 | |
| 500 | 595 | 140 | 155 | 177 | M22 | 25 | 2040 | 508 | 90 | 68 | 550 | 91.0 | |
| 520 | 615 | 140 | 155 | 177 | M22 | 28 | 2273 | 591 | 97 | 73 | 550 | 95.0 | |
| 540 | 635 | 140 | 155 | 177 | M22 | 28 | 2273 | 614 | 93 | 71 | 550 | 98.0 | |
| 560 | 655 | 140 | 155 | 177 | M22 | 30 | 2437 | 682.6 | 96 | 74 | 550 | 101.0 | |
| 580 | 675 | 140 | 155 | 177 | M22 | 30 | 2437 | 707.4 | 93 | 72 | 550 | 104.0 | |
| 600 | 695 | 140 | 155 | 177 | M22 | 30 | 2437 | 731.6 | 90 | 70 | 550 | 108.0 | |
| 注：Z12C型胀紧联结套螺钉的机械性能等级为8.8级 | |||||||||||||
