产品名称：Z1型胀套(JB/T7934-1999)
产品编号：
产品原价：￥
本站价格：￥
商品描述

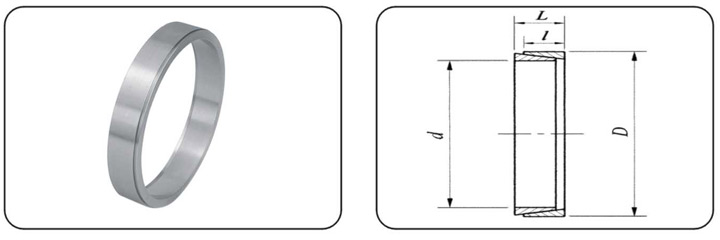

| Z1型胀套基本尺寸和参数 |
规格
d×D |
基本尺寸 |
当Pf=100N／mm2时的额定负荷
|
重量G
(Kg) |
| d |
D |
L |
I |
Ft(KN) |
Mt(KN.m) |
| 9×12 |
9 |
12 |
4.5 |
3.70 |
0.6 |
0.012 |
0.002 |
| 10×13 |
10 |
13 |
4.5 |
3.70 |
0.69 |
0 014 |
0.002 |
| 11×14 |
11 |
14 |
4.5 |
3.70 |
0.84 |
0.015 |
0.002 |
| 12×15 |
12 |
15 |
4.5 |
3.70 |
1.0 |
0 017 |
0.002 |
| 13×16 |
13 |
16 |
6.3 |
5.30 |
1.1 |
0.018 |
0.002 |
| 14×18 |
14 |
18 |
6.3 |
5.30 |
2.0 |
0.029 |
0.005 |
| 15×19 |
15 |
19 |
6.3 |
5.30 |
2.3 |
0.030 |
0.005 |
| 16×20 |
16 |
20 |
6.3 |
5.30 |
2.6 |
0.033 |
0.006 |
| 17×21 |
17 |
21 |
6.3 |
5.30 |
2.9 |
0.035 |
0.006 |
| 18×22 |
18 |
22 |
6.3 |
5.30 |
3.3 |
0.037 |
0.006 |
| 19×24 |
19 |
24 |
6.3 |
5.30 |
3.6 |
0.039 |
0.08 |
| 20×25 |
20 |
25 |
6.3 |
5.30 |
4.0 |
0.004 |
0.01 |
| 22×26 |
22 |
26 |
6.3 |
5.30 |
4.5 |
0.005 |
0.01 |
| 25×30 |
25 |
30 |
6.3 |
5.30 |
5.0 |
0.06 |
0.01 |
| 28×32 |
28 |
32 |
6.3 |
5.30 |
5.6 |
0.08 |
0.01 |
| 30×35 |
30 |
35 |
6.3 |
5.30 |
6.0 |
0.09 |
0.01 |
| 32×36 |
32 |
36 |
6.3 |
5.30 |
6.4 |
0.10 |
0.01 |
| 35×40 |
35 |
40 |
7.0 |
6.00 |
8.2 |
0.15 |
0.02 |
| 40×45 |
40 |
45 |
8.0 |
6.60 |
9.9 |
0.20 |
0.02 |
| 45×52 |
45 |
52 |
10 |
8.60 |
14 6 |
0.33 |
0.04 |
| 50×57 |
50 |
57 |
10 |
8.60 |
16.2 |
0.40 |
0.05 |
| 55×62 |
55 |
62 |
10 |
10.4 |
17.8 |
0.49 |
0.05 |
| 60×68 |
60 |
68 |
12 |
10.4 |
23.5 |
0.70 |
0.07 |
| 65×73 |
65 |
73 |
12 |
12.2 |
25.6 |
0.83 |
0.08 |
| 70×79 |
70 |
79 |
14 |
12.2 |
32.0 |
1.12 |
0.11 |
| 75×84 |
75 |
84 |
14 |
12.2 |
34.4 |
1.29 |
0.12 |
| 80×91 |
80 |
91 |
17 |
15 |
45.0 |
1.81 |
0.12 |
| 85×96 |
85 |
96 |
17 |
15 |
48.0 |
2.04 |
0.20 |
| 90×101 |
90 |
101 |
17 |
15 |
51.0 |
2.29 |
0.22 |
| 95×106 |
95 |
106 |
17 |
15 |
54.0 |
2.55 |
0.23 |
| 100×114 |
100 |
114 |
21 |
18.7 |
70.0 |
3.50 |
0.38 |
| 105×119 |
105 |
119 |
21 |
18.7 |
73.2 |
3.82 |
0.40 |
| 110×124 |
110 |
124 |
21 |
18.7 |
77.0 |
4.25 |
0.41 |
| 120×134 |
120 |
134 |
21 |
18.7 |
84.0 |
5.05 |
0.45 |
| 125×139 |
125 |
139 |
21 |
18.7 |
92.0 |
5.75 |
0.62 |
| 130×148 |
130 |
148 |
28 |
25.3 |
124.0 |
8.05 |
0.85 |
| 140×158 |
140 |
158 |
28 |
25.3 |
134.0 |
9.35 |
0.91 |
| 150×168 |
150 |
168 |
28 |
25.3 |
143.0 |
10.70 |
0.97 |
| 160×178 |
160 |
178 |
28 |
25.3 |
152.5 |
12.20 |
1.02 |
| 170×191 |
170 |
191 |
33 |
30 |
192.0 |
16.30 |
1.50 |
| 180×201 |
180 |
201 |
33 |
30 |
204.0 |
18.30 |
1.58 |
| 190×211 |
190 |
211 |
33 |
30 |
214.0 |
20.40 |
1.68 |
| 200×224 |
200 |
224 |
38 |
34.8 |
262.0 |
26.20 |
2.32 |
| 210×234 |
210 |
234 |
38 |
34.8 |
275 |
28.90 |
2.45 |
| 220×244 |
220 |
244 |
38 |
34.8 |
288.0 |
37.70 |
2.49 |
| 240×267 |
240 |
267 |
42 |
39.5 |
358.0 |
43.00 |
3.52 |
| 250×280 |
250 |
280 |
48 |
44 |
415 |
52.00 |
4.68 |
| 260×290 |
260 |
290 |
48 |
44 |
435.0 |
56.50 |
4.82 |
| 280×313 |
280 |
313 |
53 |
49 |
520.0 |
72.50 |
6.27 |
| 300×333 |
300 |
333 |
53 |
49 |
555.0 |
83.00 |
6.47 |
| 320×360 |
320 |
360 |
65 |
59 |
710.0 |
114.00 |
10.90 |
| 340×380 |
340 |
380 |
65 |
59 |
755 |
128.50 |
11.50 |
| 360×400 |
360 |
400 |
65 |
59 |
800 |
144.00 |
12.20 |
| 380×420 |
380 |
420 |
65 |
59 |
845 |
160.50 |
12.80 |
| 400×440 |
400 |
440 |
65 |
59 |
890 |
178.00 |
13.50 |
| 420×460 |
420 |
460 |
65 |
59 |
935 |
196.00 |
14.10 |
| 450×490 |
450 |
490 |
65 |
59 |
998.0 |
224.50 |
15.20 |
| 480×520 |
480 |
520 |
65 |
59 |
1070.0 |
256.00 |
16.00 |
| 500×540 |
500 |
540 |
65 |
59 |
1110.0 |
278.00 |
16.50 |
| 注：Pf为胀紧联结套与轴结合面上的压力． |
|
